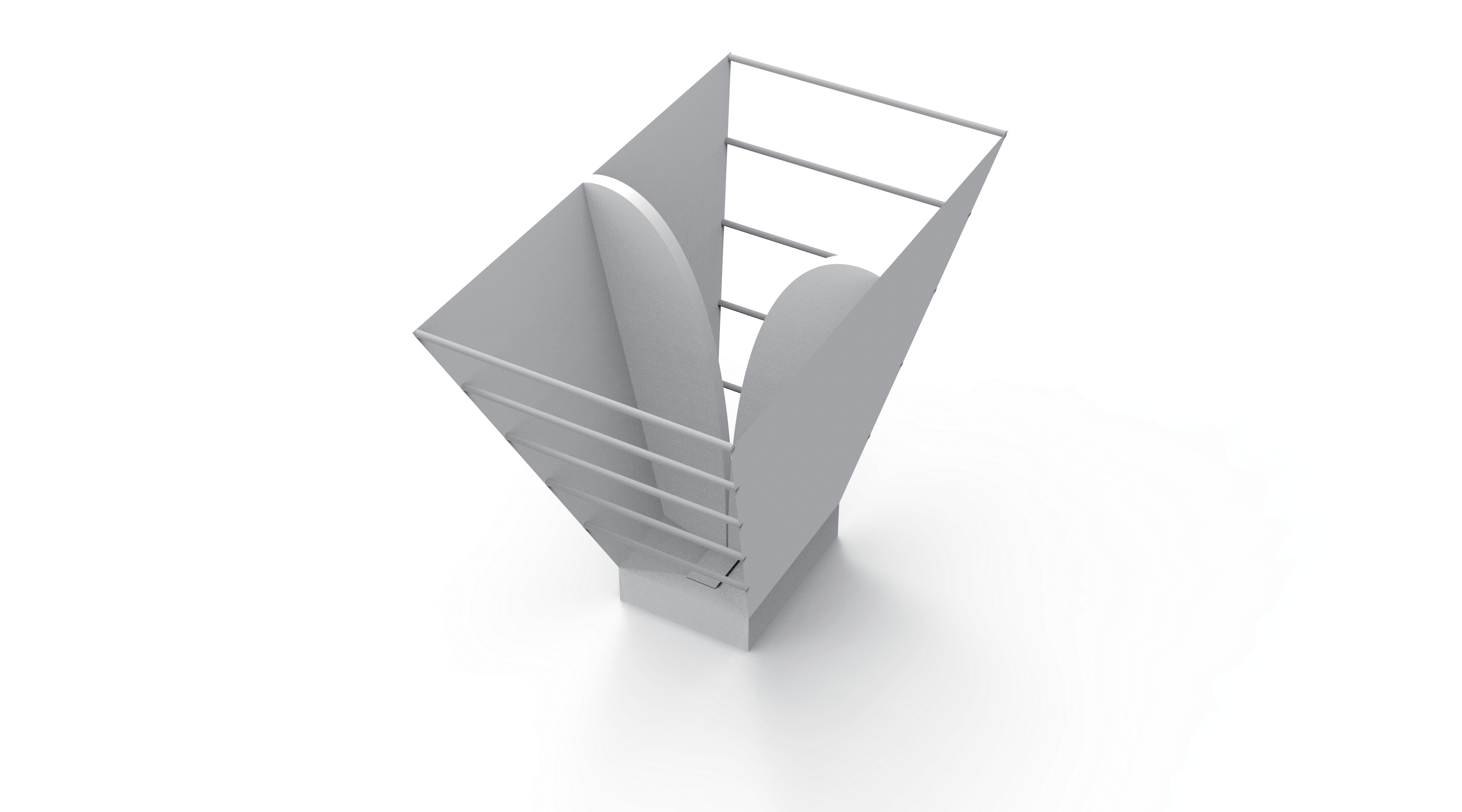

LAMBDA Series Wideband Horn Antennas

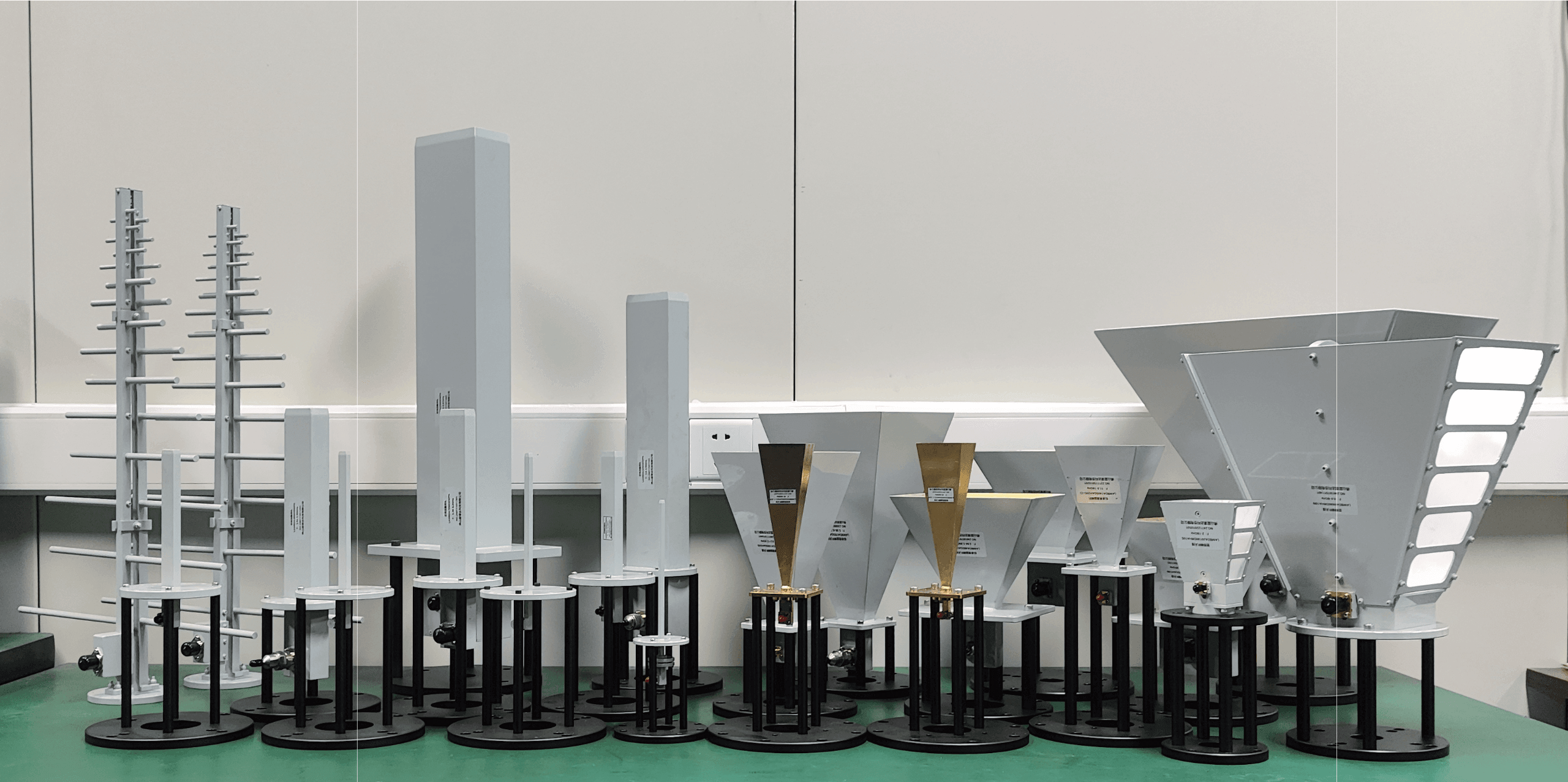

Providing various microwave and mmWave antennas and probes from 2.6GHz~110GHz (higher bands customizable), such as: standard gain horn antennas, wideband horn antennas, omnidirectional antennas, planar wave generators, etc.
|
Model |
Freq. Band |
Gain(TYP.) |
Uswr |
Terminal |
Material |
|
LAMBDA0680DRHA10N |
0.6~8GHz |
10dB |
≤2.5 |
N-K |
aluminum |
|
LAMBDA0860DRHA10N |
0.8~6GHz |
10dB |
≤2.5 |
N-K |
aluminum |
|
LAMBDA1080DRHA10N |
1~8GHz |
10dB |
≤2.5 |
N-K |
aluminum |
|
LAMBDA10180RHA10N |
1~18GHz |
10dB |
≤2.5 |
N-K |
aluminum |
|
LAMBDA20180DRHA10S |
2~18GHz |
10dB |
≤2.5 |
SMA-K |
aluminum |
|
LAMBDA20180DRHA17S |
2~18GHz |
17dB |
≤2.5 |
SMA-K |
aluminum |
|
LAMBDA80180DRHA20S |
8~18GHz |
20dB |
≤2.5 |
SMA-K |
aluminum |
|
LAMBDA180400DRHA20K |
18~40GHz |
20dB |
≤2.5 |
2.92-K |
copper |
