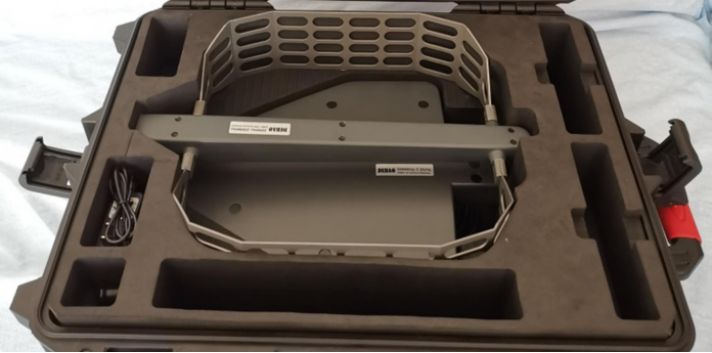

LAMBDA Series Directional Handheld Antenna
The LAMBDA-DAP085 is a segmented professional handheld antenna kit covering an ultra-wide frequency range of 8.5kHz ~ 8.5GHz, specially designed to match handheld spectrum analyzers. It integrates multiple antenna units: low-frequency magnetic field detection, medium-high frequency electric field reception, ultra-wideband omnidirectional scanning, and high-frequency directional positioning. It fully meets field and laboratory requirements including EMC pre-compliance testing, electromagnetic interference tracing, wireless signal inspection, and radiation detection of industrial equipment.
Product Specification
|
Model |
Frequency Band |
Weight |
|
LAMBDA8000B-HF |
8.5KHz-30MHz |
0.95KG |
|
LAMBDA8000B-VHF |
20MHz-200MHz |
0.95KG |
|
LAMBDA8000B-UWB |
30MHz-6000MHz |
1.1KG |
|
LAMBDA8000B-LogANT |
400MHz-8500MHz |
1.25KG |
|
LAMBDA8000B-TB |
700MHz-2500MHz |
1.1KG |

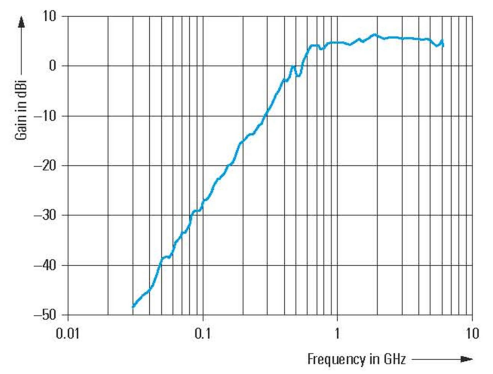

Antenna Electrical Parameters
|
Gain |
VSWR |
Connector |
|
-11 ~ 5dBi (Typical) |
< 1：2.5 (Typical) |
50Ω N-Male Connector |
Measured Spectrum Data
|

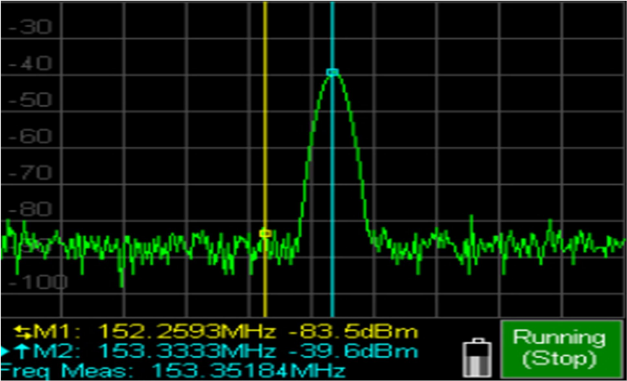

Precise intermediate frequency analysis & frequency measurement |
|

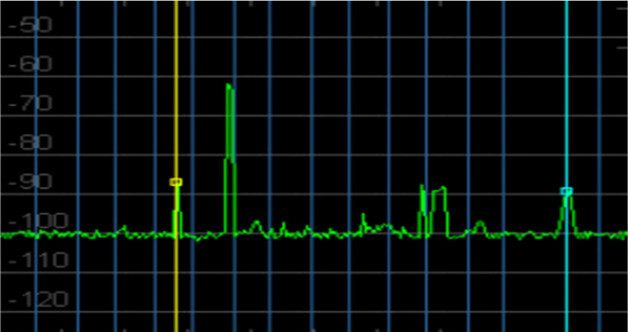

Full-band spectrum sweep measurement |
|

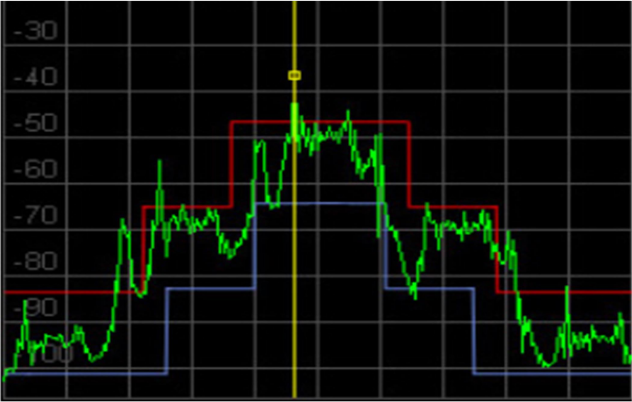

Spectrum measurement for radiation over-limit inspection |
|

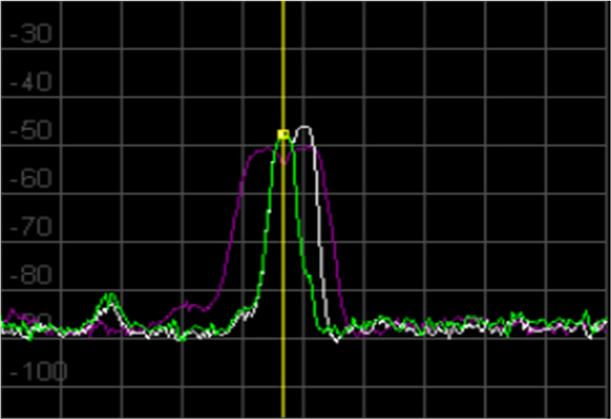

Real-time spectrum viewing, record storage & tracking measurement |
