LAMBDA Series UD Converter Parameters
UD Converter Parameters
UD Box is an up/down converter with an integrated mixer, an internal local oscillator (LO) as well as optional IF and RF filters that are explicitly made for 5G and satellite applications. Ｗith the built-in LO from phase-locked oscillator (PLO) product line to ensure excellent phase noise performance, our UD Box makes radio frequency conversion easy and flexible.

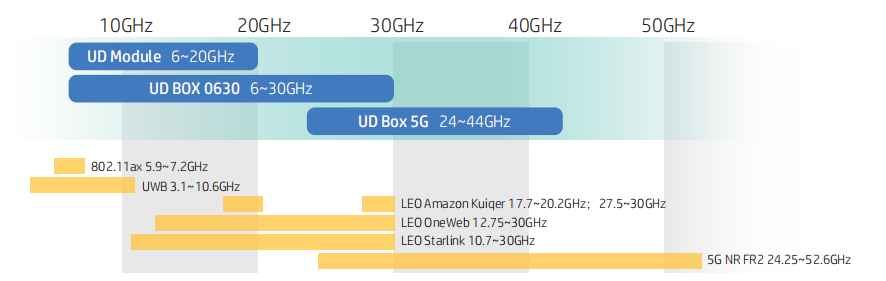

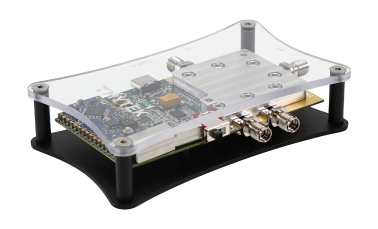

UD Board
Operating Freq.: 23~30GHz
Dimensions: 105.3 × 65.6 × 23.4 mm
Freq. Range: IF 2.6~5.8 GHz; RF 23~30 GHz; LO 4.75 ~6.75 GHz
Conversion Loss: Tx 11.5 dB Gain typ. ; Rx 8 dB Gain typ.
· Unidirectional, requires external LO. Suitable for teaching, basic R&D.

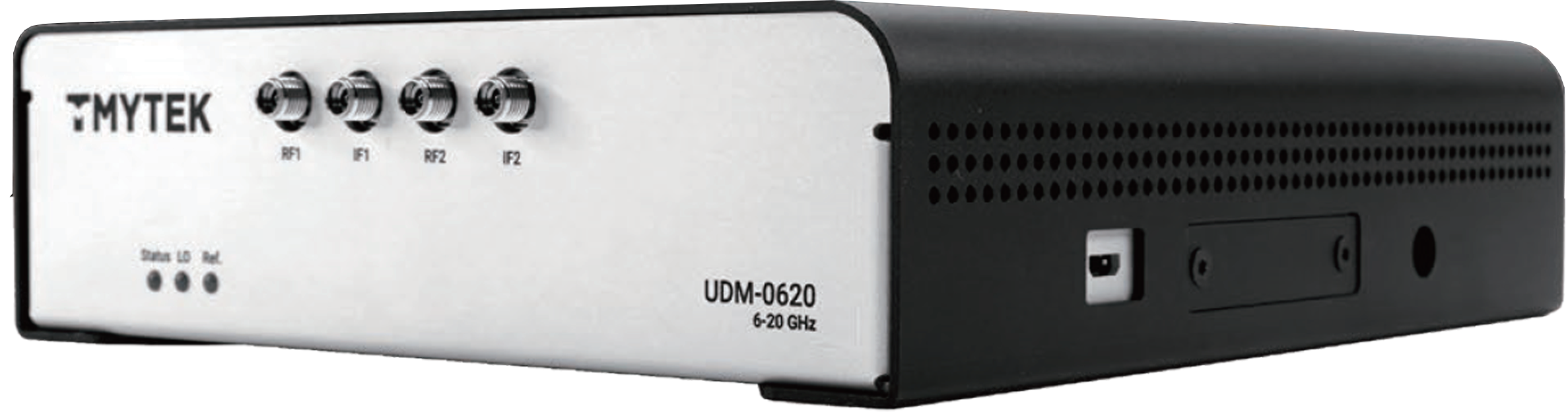

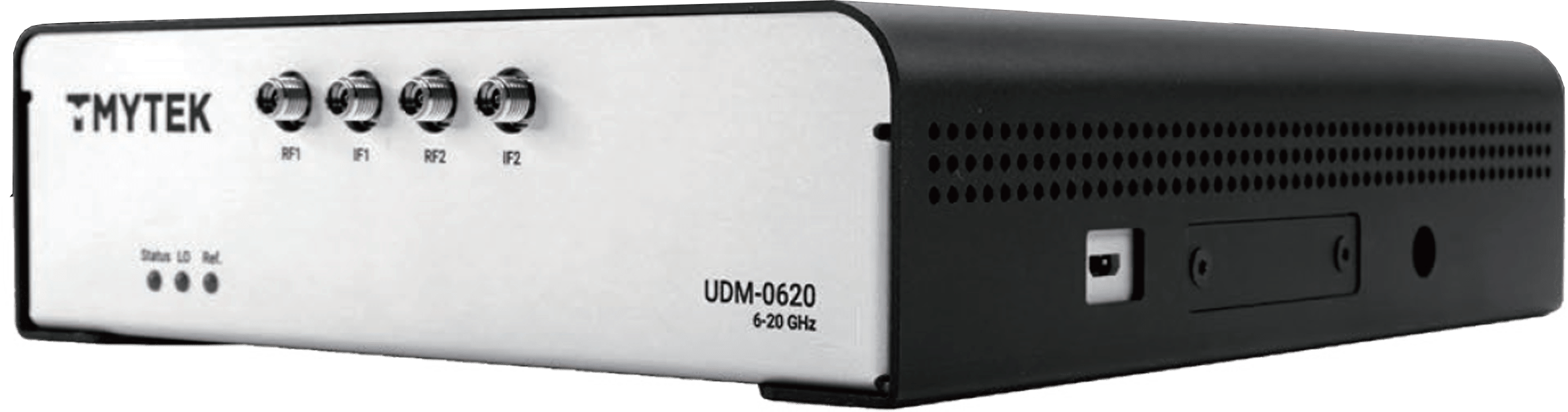

UD Module
Operating Freq.: 6~20 GHz
Dimensions: 222 × 177 × 51 mm
Freq. Range: IF 1~10 GHz; RF 6~20 GHz
Conversion Loss: 10 dB(typ.)
· Integrated up/down conversion, built-in LO. Selectable IF/RF filters. Suitable for Wi-Fi 6/7, UWB, LEO applications.

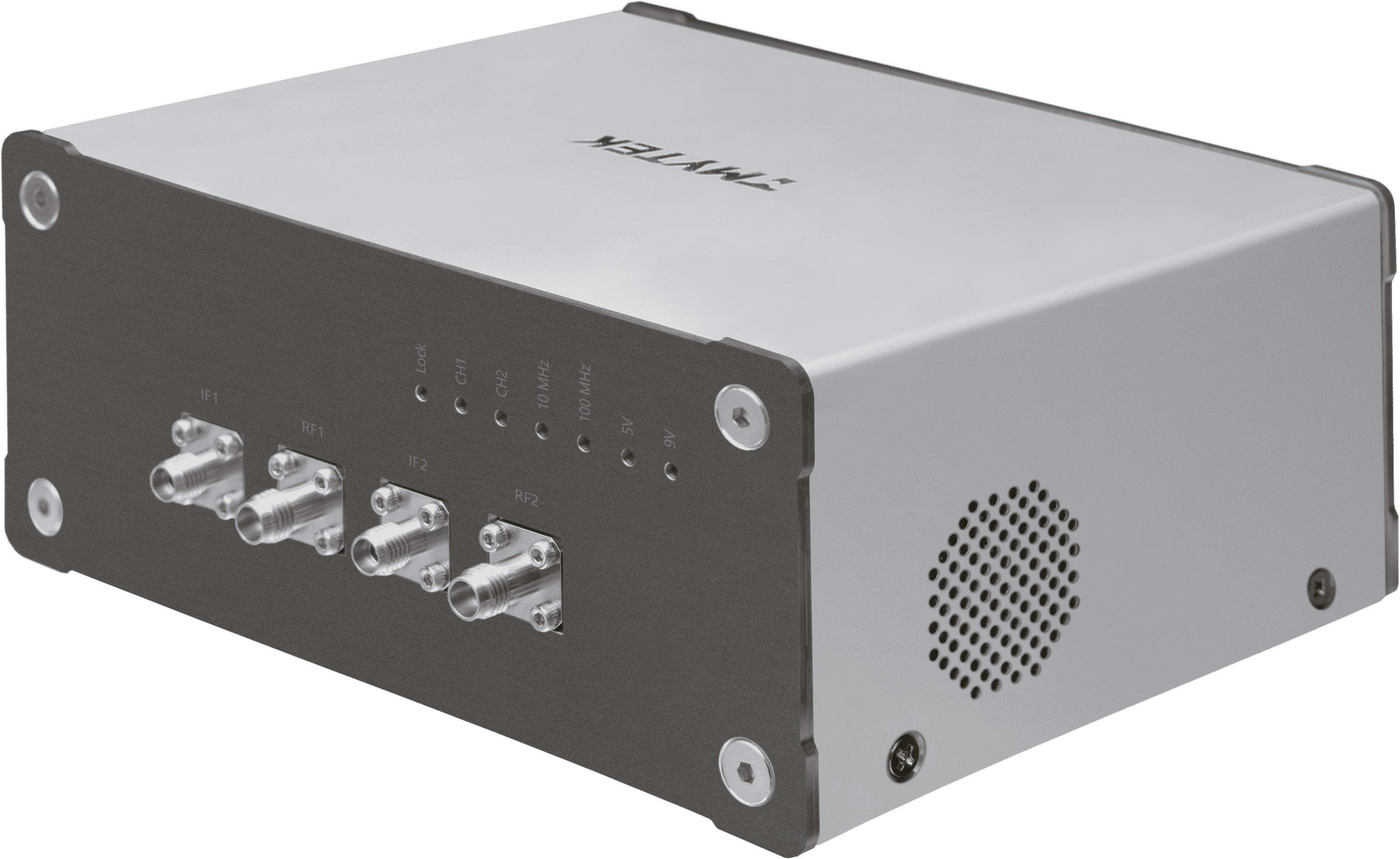

UD Box 5G
Operating Freq.: 24~44 GHz
Dimensions: 143 × 152 × 65 mm
Freq. Range: IF 0.01~14 GHz; RF 24~44 GHz
Conversion Loss: 13 dB(typ.)
· Optional single-channel or dual-channel
· 10 MHz outpu, 100 MHz input/output sync signal
· Integrated up/down conversion, built-in LO. Selectable IF/RF filters. Suitable for 5G and satellite applications.

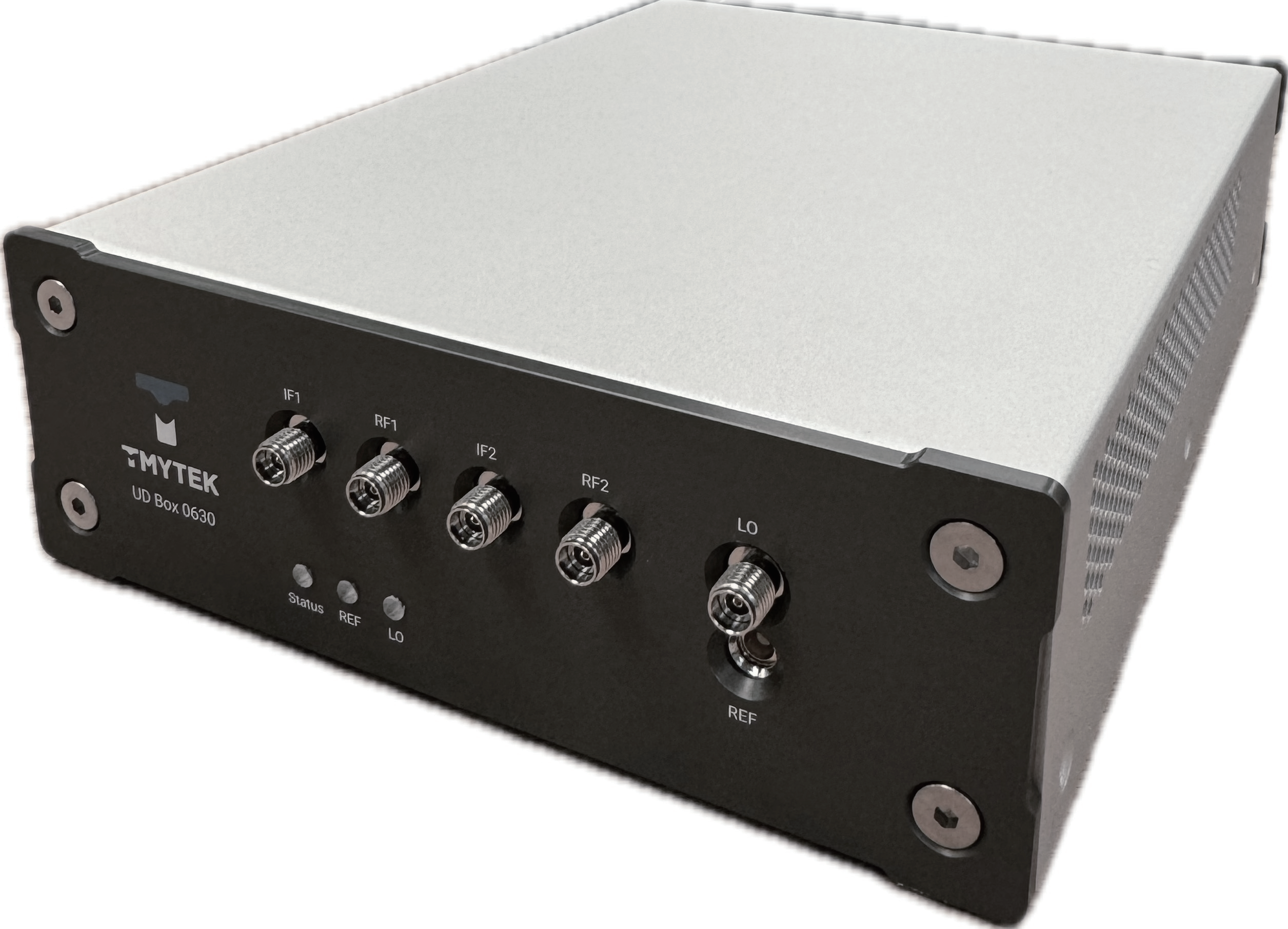

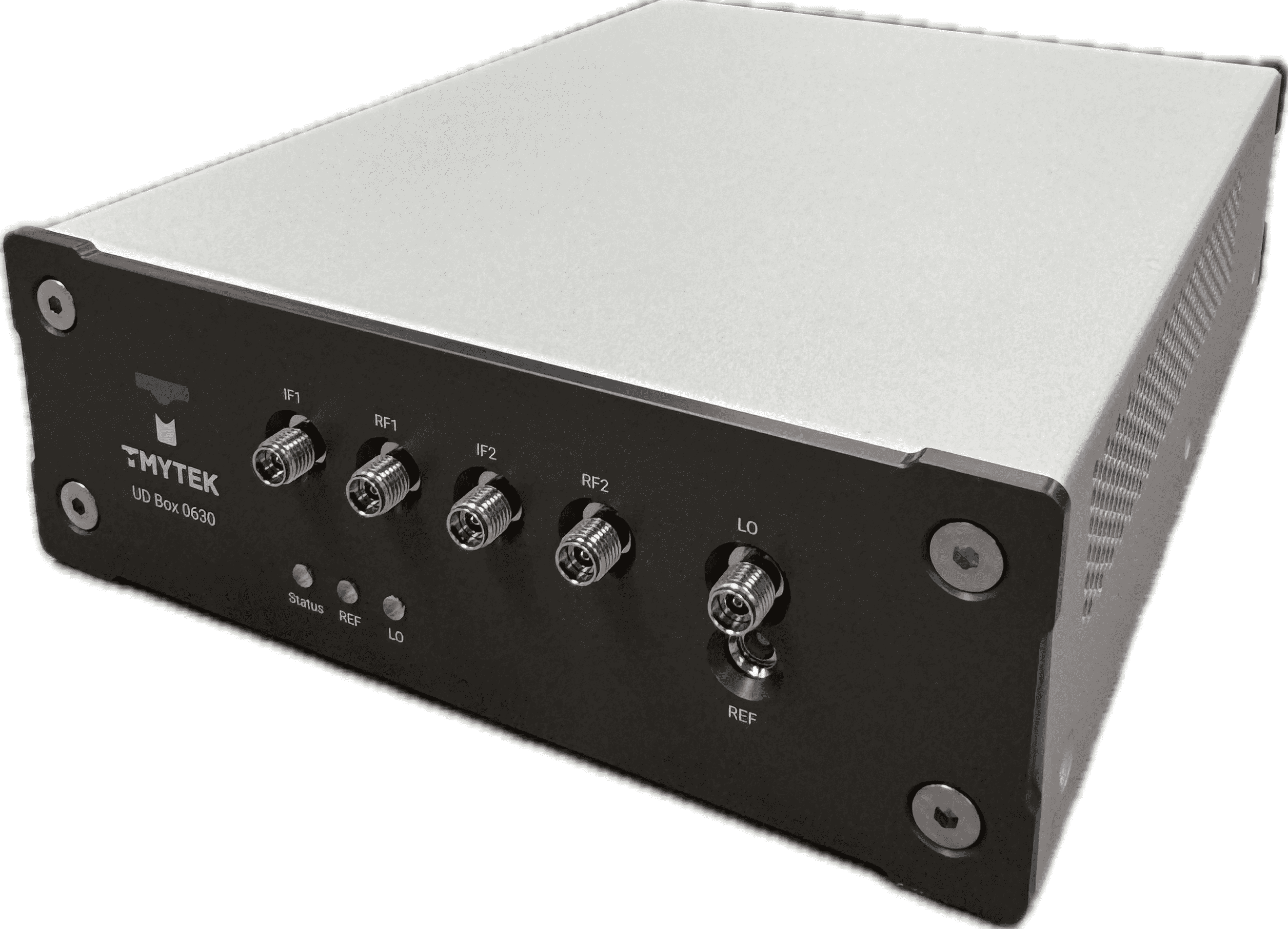

UD Box 0630
Operating Freq.: 6~30 GHz
Dimensions: 142.8 × 152 × 65 mm
Freq. Range: IF 1~8 GHz; RF 6~30 GHz
Conversion Loss: 10 dB(typ.)
· 10 MHz output, 100 MHz input/output sync signal
· Integrated up/down conversion, built-in LO. Selectable IF/RF filters. Suitable for defense radar, UWB, satellite applications.
