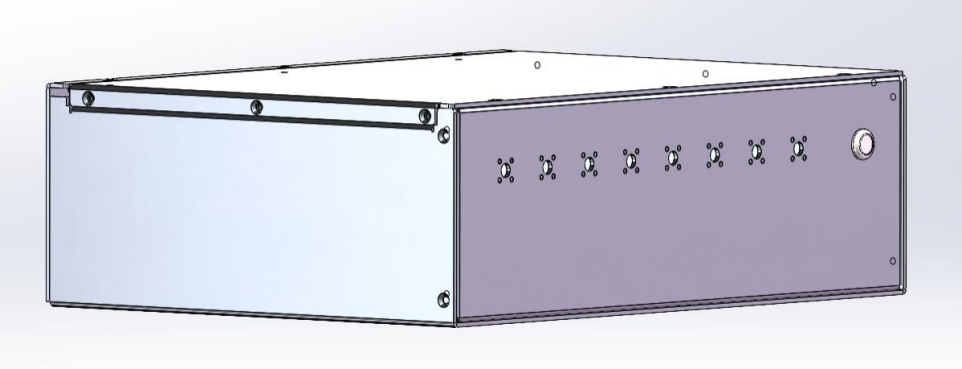

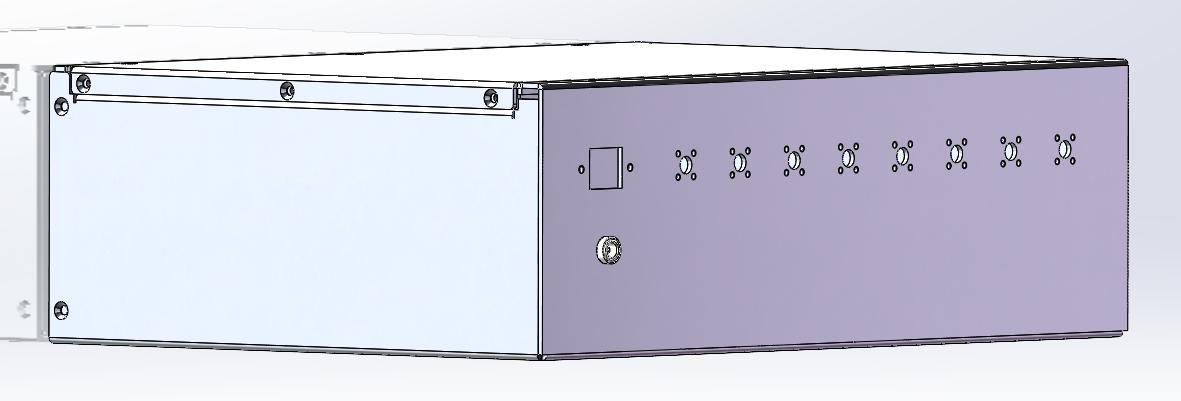

LAMBDA Series Attenuator
Applications
This attenuator is an 8-channel attenuator covering frequencies from 0.1 to 6GHz, with a maximum attenuation of 31.75dB.
Product Specification
|
Parameter |
Unit |
Specification |
|
Frequency Range |
GHz |
0.1~6 |
|
Number of Channels |
/ |
8 |
|
Maximum Attenuation Setting |
dB |
31.75 |
|
Attenuation Step |
dB |
0.25 |
|
Input/Output VSWR |
|
≤ 2 (non-attenuating state) |
|
Input/Output Connectors |
|
SMA-KFD |
|
Insertion Loss (typ.) |
dB |
3.5 |
|
Control Interface |
/ |
LAN |
|
Power Supply |
/ |
DC 12 V / 3 A, with a Japanese standard power adapter included |
|
Attenuation-Dependent Phase Shift |
/ |
Phase shift data for each channel/attenuation setting is provided |
INTERFACE
The LAMBDA series DSA supports VISA and TCP/IP protocol.
