LAMBDA Series RF Microwave Teaching Platform
Applications
Teaching Function: Antenna test principles, antenna test system instruction.
Lab Function: VNA calibration/use lab, antenna (far-field) tech lab, system setup lab, VSWR test lab, input impedance test lab,radiation pattern test lab, gain test lab, polarization test lab, etc.
Product Features
· Integration of antenna test technology and teaching labs; intuitive, clear, enhances learning interest.
· Provides small antenna samples, configured with small positioner, for real-time understanding of antenna signal trans-mission.
· Complete kit design, out-of-the-box, easy for labs and teaching.
· Integrated software interface, simple and easy to understand.

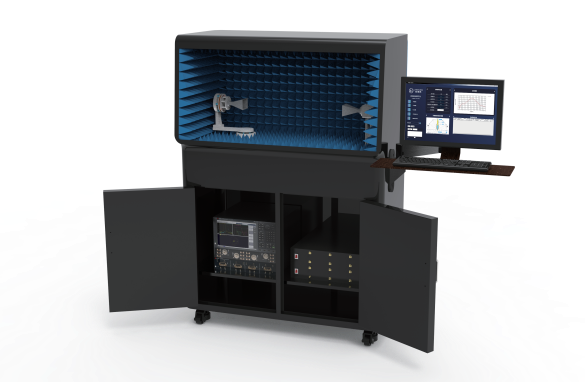

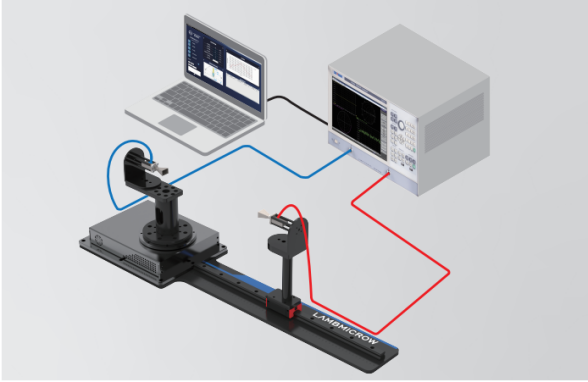

Optional Configuration
Software System
· Microwave Teaching Platform Test Software

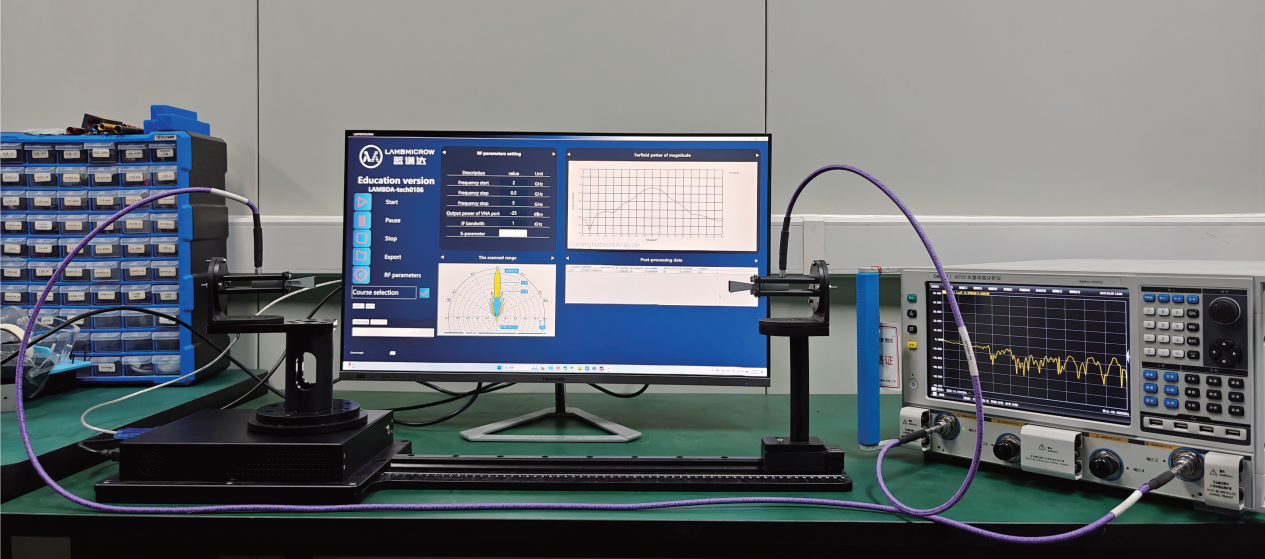

Picture of Device

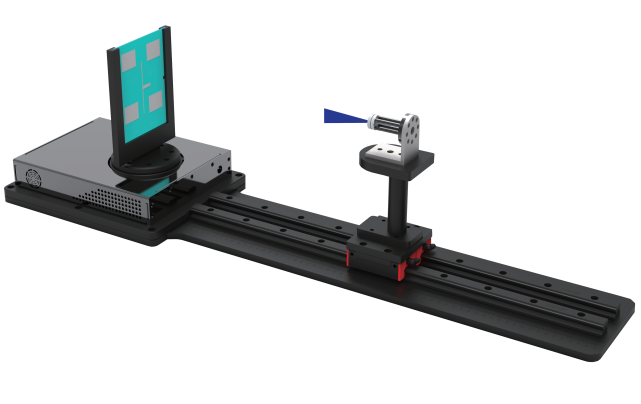

Sub-6GHz Antenna Testing Application Experiment
· Freq. Band: 1GHz~6GHz
· Teaching of antenna principles and testing systems
· Use of vector network analyzers
· Antenna standing wave ratio (SWR) testing experiments
· Radiation pattern testing and interpretation of gain data

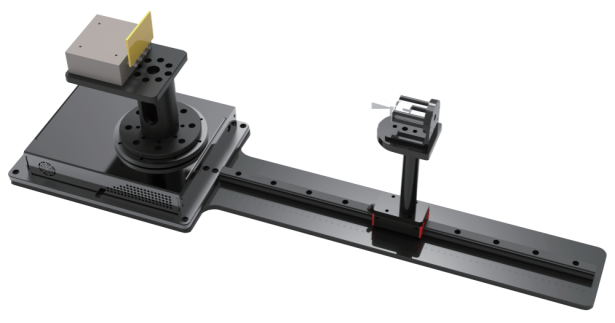

Multi-beam Amplitude and Phase Modulation Antenna Testing Application Experiment
· Freq. Band: 26.5GHz~29.5GHz
· RF fundamental knowledge and skills
· Electromagnetic wave interference
· Beamforming and beam steering, antenna verification
· Receiver gain and phase alignment

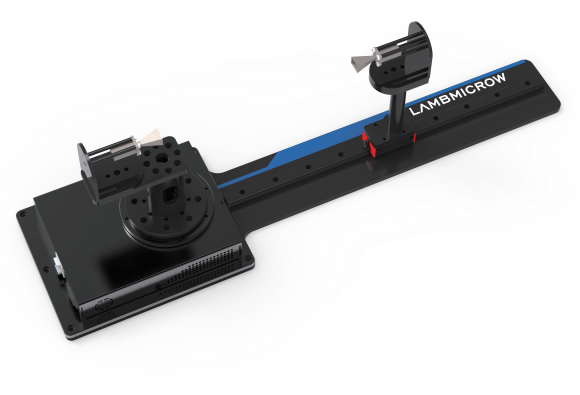

Terahertz Antenna Testing Application Experiment
· Freq. Band: 67GHz~110GHz
· Terahertz antenna far-field testing verification
· Application of frequency extension modules
