LAMBDA Series Beamformer
BBoxTM Beamformer
Beamforming is critical for mmWave applications. The BBox™ series provides an out-of-the-box beamforming platform.
Using the GUI (TMXLAB Kit, TLK), users can easily change beam angles and modify signal gain to perform multiple beamforming experiments.

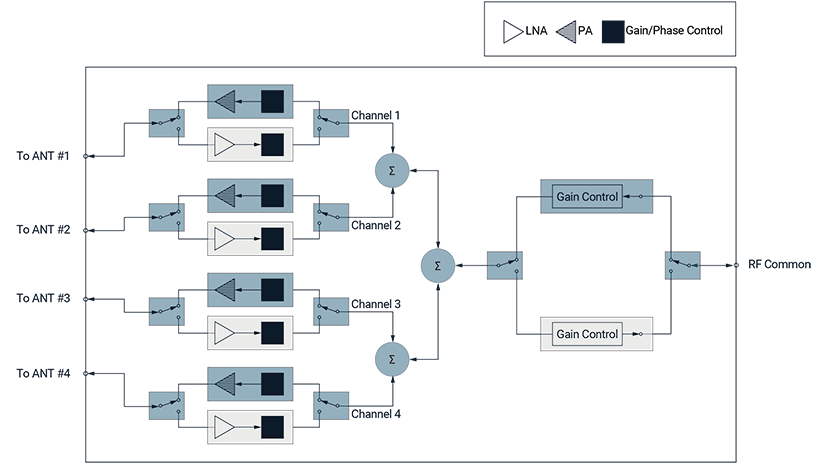

· Independent control of each channel’s switch, gain, and phase
· Rapid maximum gain / boresight setting
· Provides secondary development (API) functions
Specifications
|
|

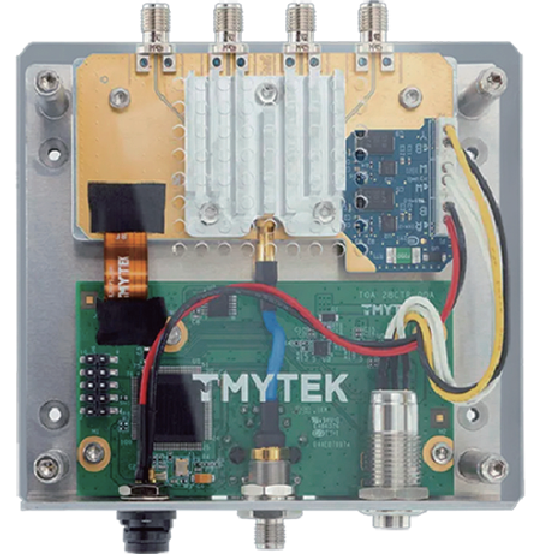

BBoard 5G |

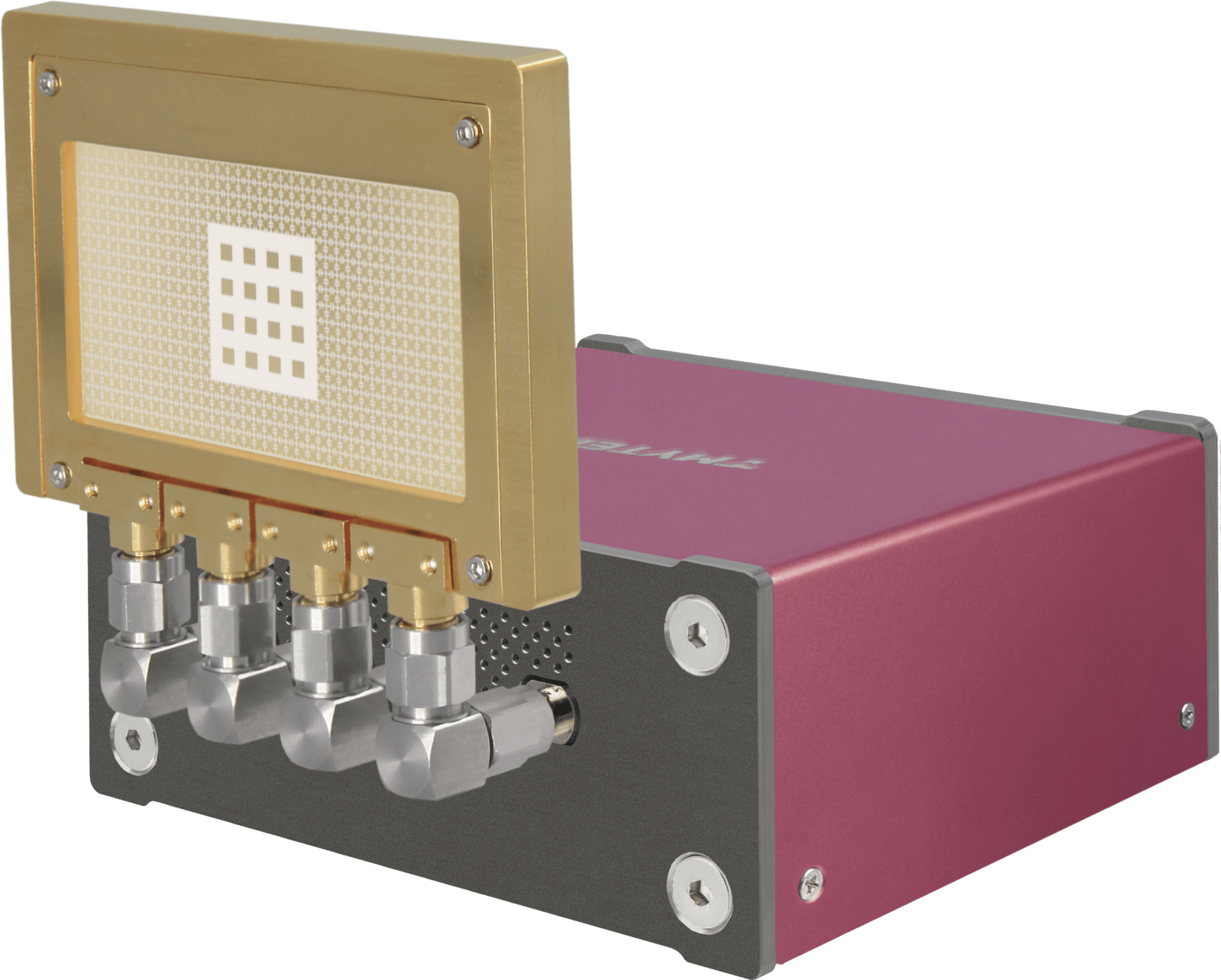

BBox Lite 5G |

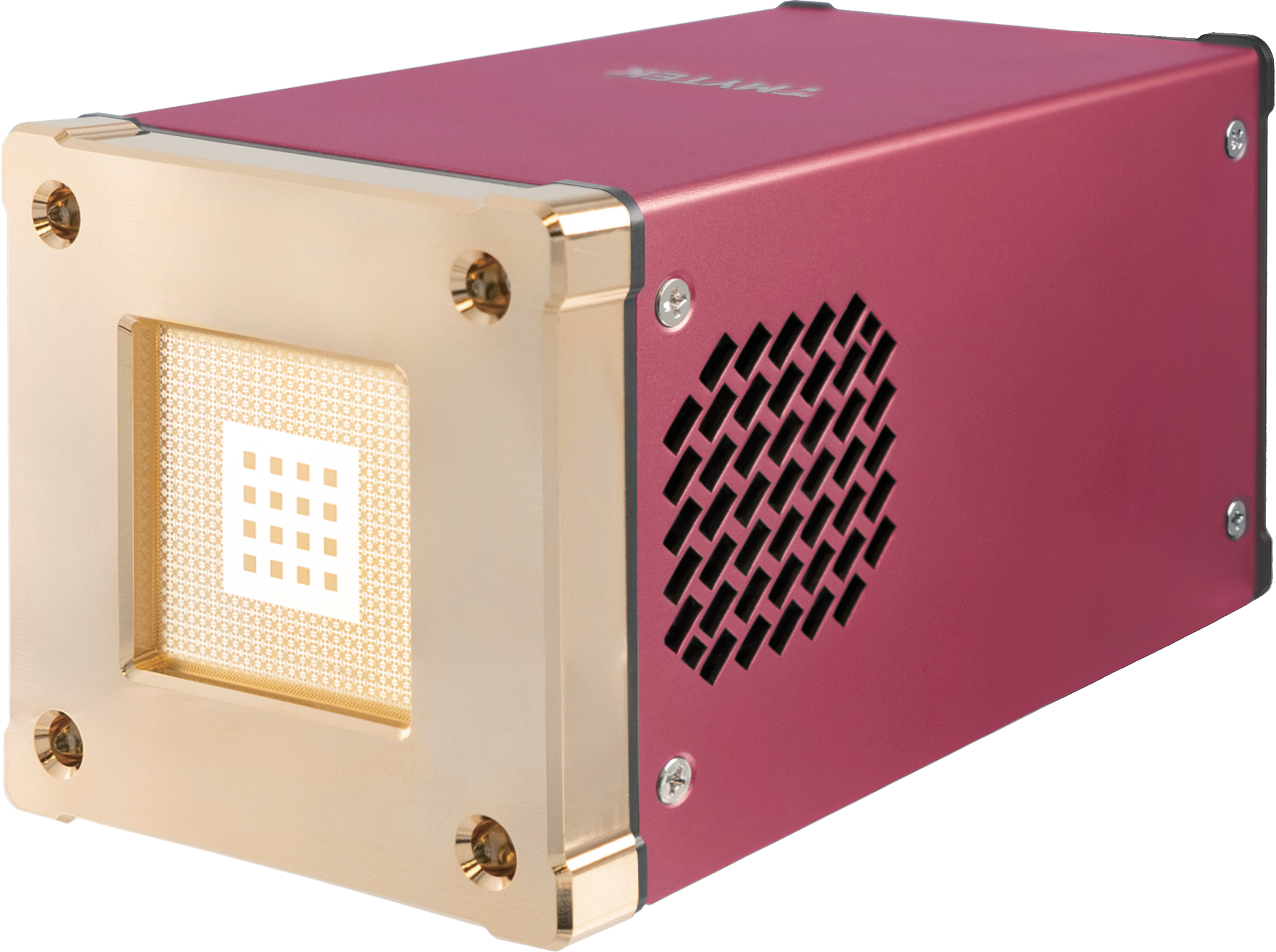

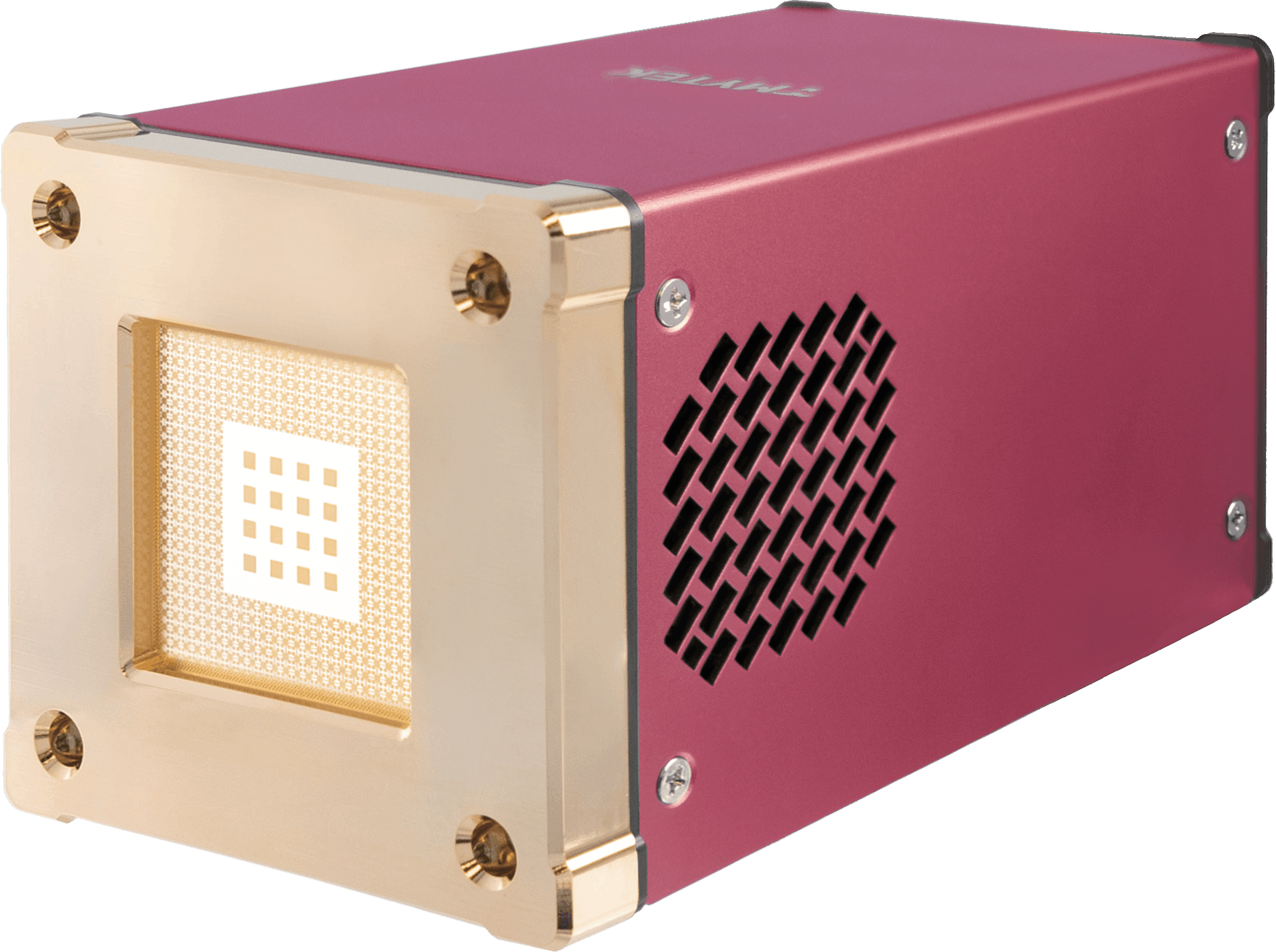

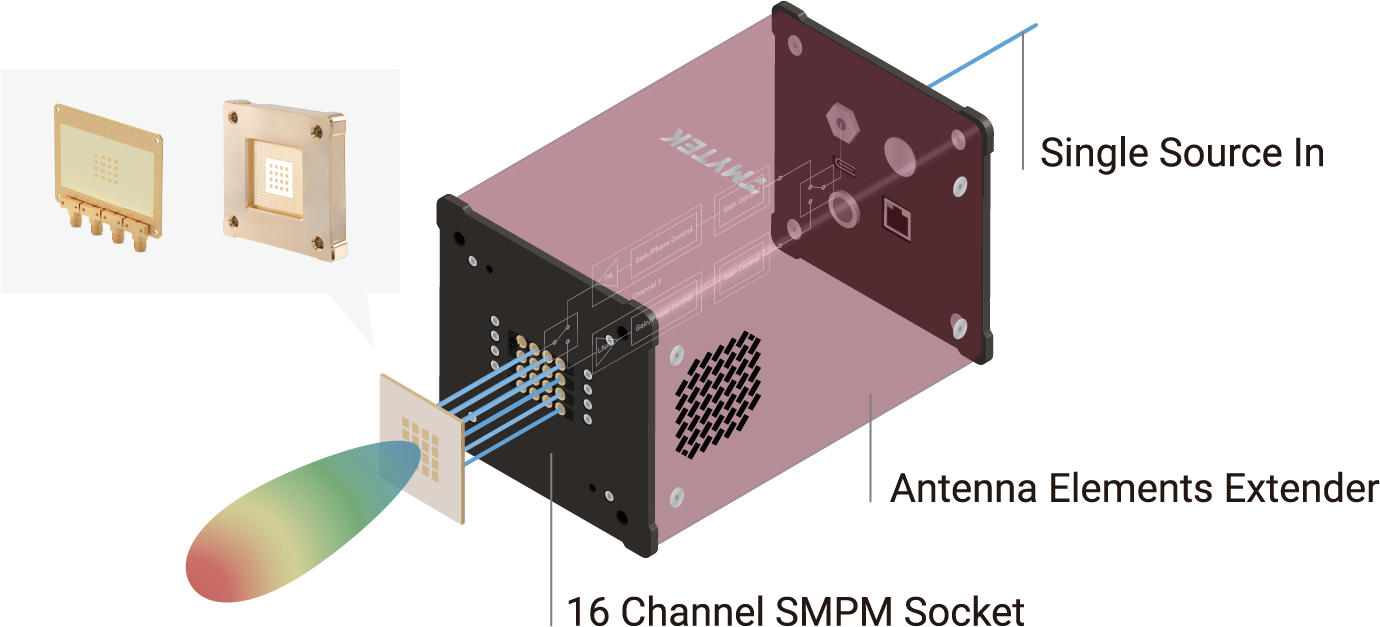

BBox One 5G |
|
Freq. Band |
26.5~29.5 GHz / 37~40 GHz |
26.5~29.5 GHz / 37~40 GHz |
26.5~29.5 GHz / 37~40 GHz |
|
RF Channels |
1 × 4 |
1 × 4 |
4 × 4 |
|
Antenna |
1 × 4 Patch Array |
1 × 4 Patch Array |
4 × 4 / 8×8 Patch Array |
|
Beam Scan Dir. |
1D |
1D / 2D |
1D / 2D |
|
Phase Shift Range |
360° / 5°step |
360° / 5°step |
360° / 5°step |
|
Gain Range |
15 dB / 0.5 dB step |
15 dB / 0.5 dB step |
15 dB / 0.5 dB step |
|
Dimensions |
107 × 100 × 39 mm |
124 × 102 × 104 mm |
156 × 82 × 82 mm |
|
Supports Tx/Rx half-duplex (TDD), each channel includes PA, LNA, Phase Shifter. Includes amplitude/phase control GUI, beamforming algorithm API library. |
|||
