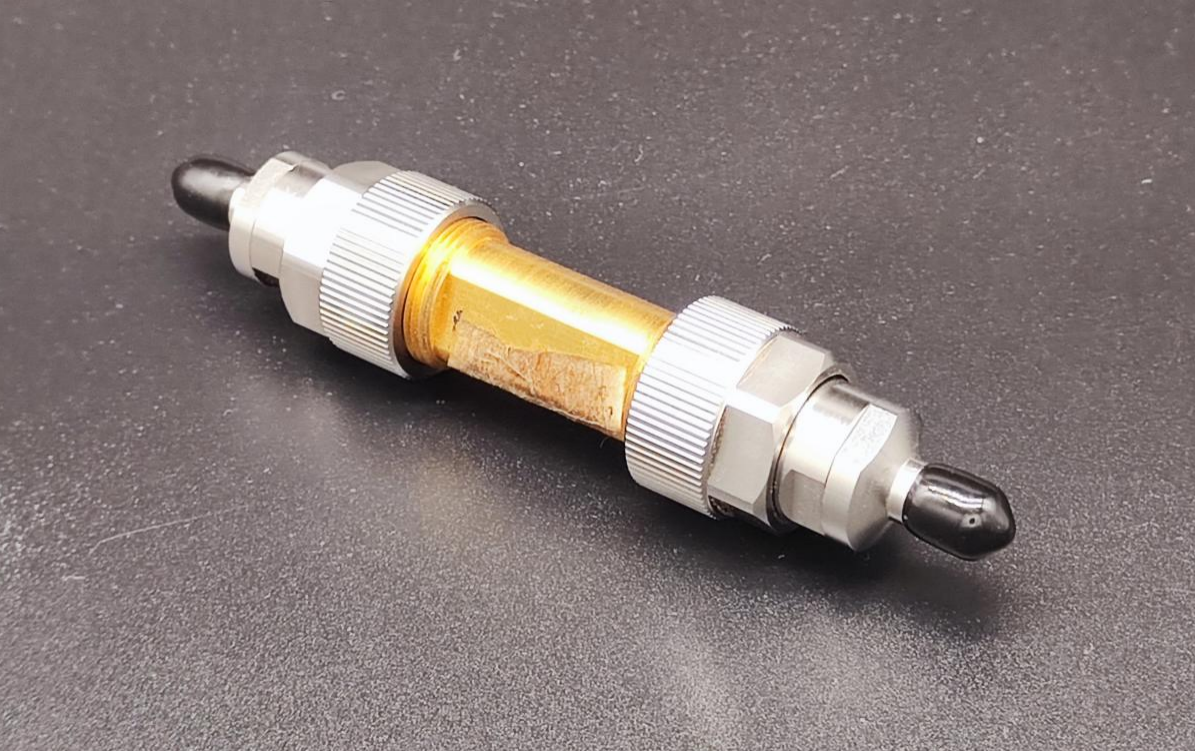

LAMBDA Series Coaxial Transmission Line Dielectric Measurement System
Applications
Based on coaxial transmission line electromagnetic transmission and resonance theory, the system adopts the classic NRW transmission-reflection method to accurately measure broadband complex permittivity and dielectric loss of cylindrical ring-shaped solid dielectrics. Featuring compact structure, easy sample preparation and wide frequency coverage, it applies to scientific R&D, incoming industrial inspection and electromagnetic material performance calibration.
Product Features
· Single-unit frequency coverage: 200 MHz ~ 18 GHz without fixture replacement for fast measurement.
· Dielectric constant tolerance: 8%, loss tolerance: 10%, satisfying industrial QC and laboratory accuracy requirements.
· Traceable and comparable test results.
· Fully automatic software with one-click calibration, automatic data acquisition, result calculation and report export.
Specifications
Test frequency: 200 MHz ~ 18 GHz (customizable)
Test range: permittivity 2~100, dielectric loss 0.1~2
Test precision: permittivity ±8%, loss ±10%
Sample requirement: annular solid specimen

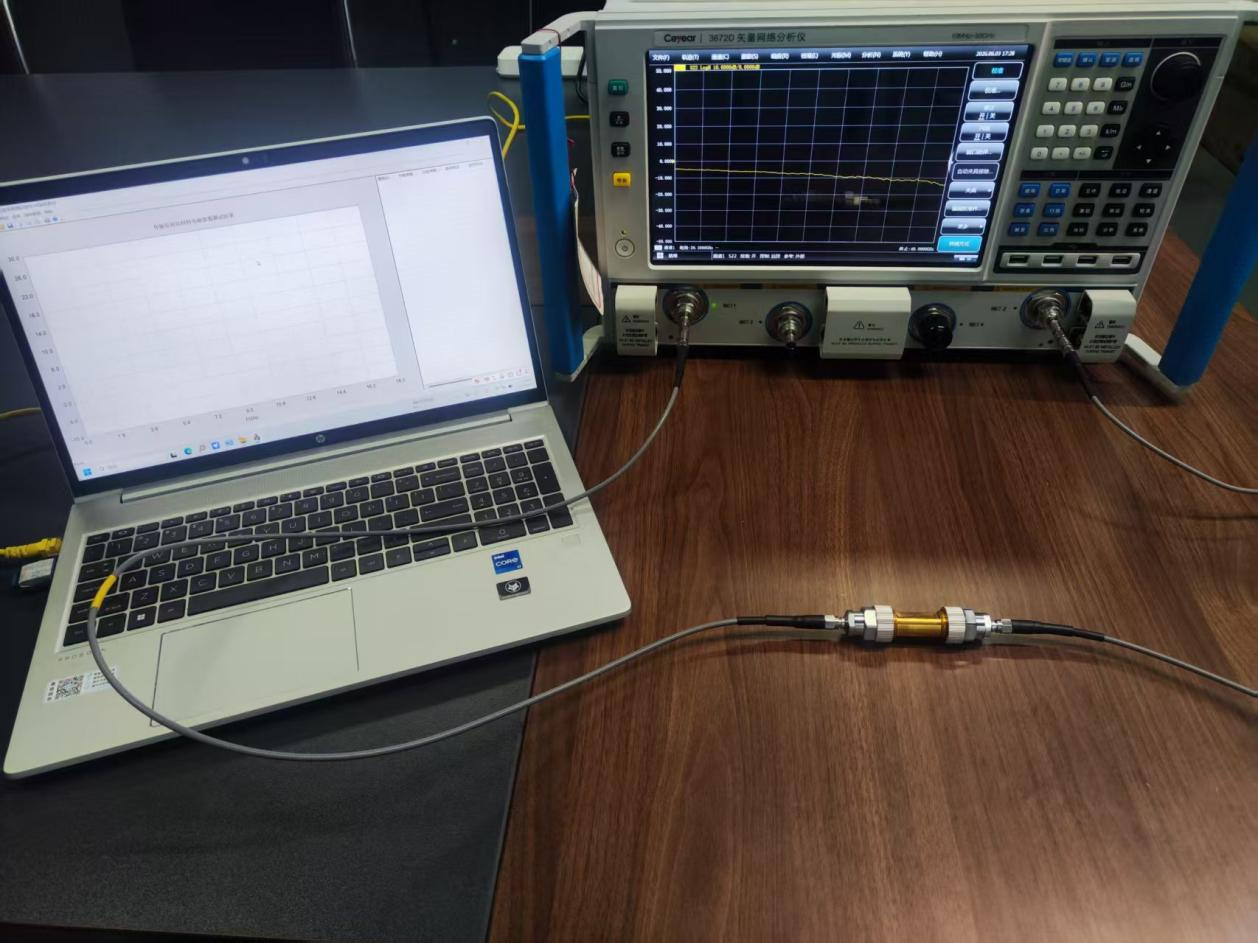

Physical Photo of Test Equipment

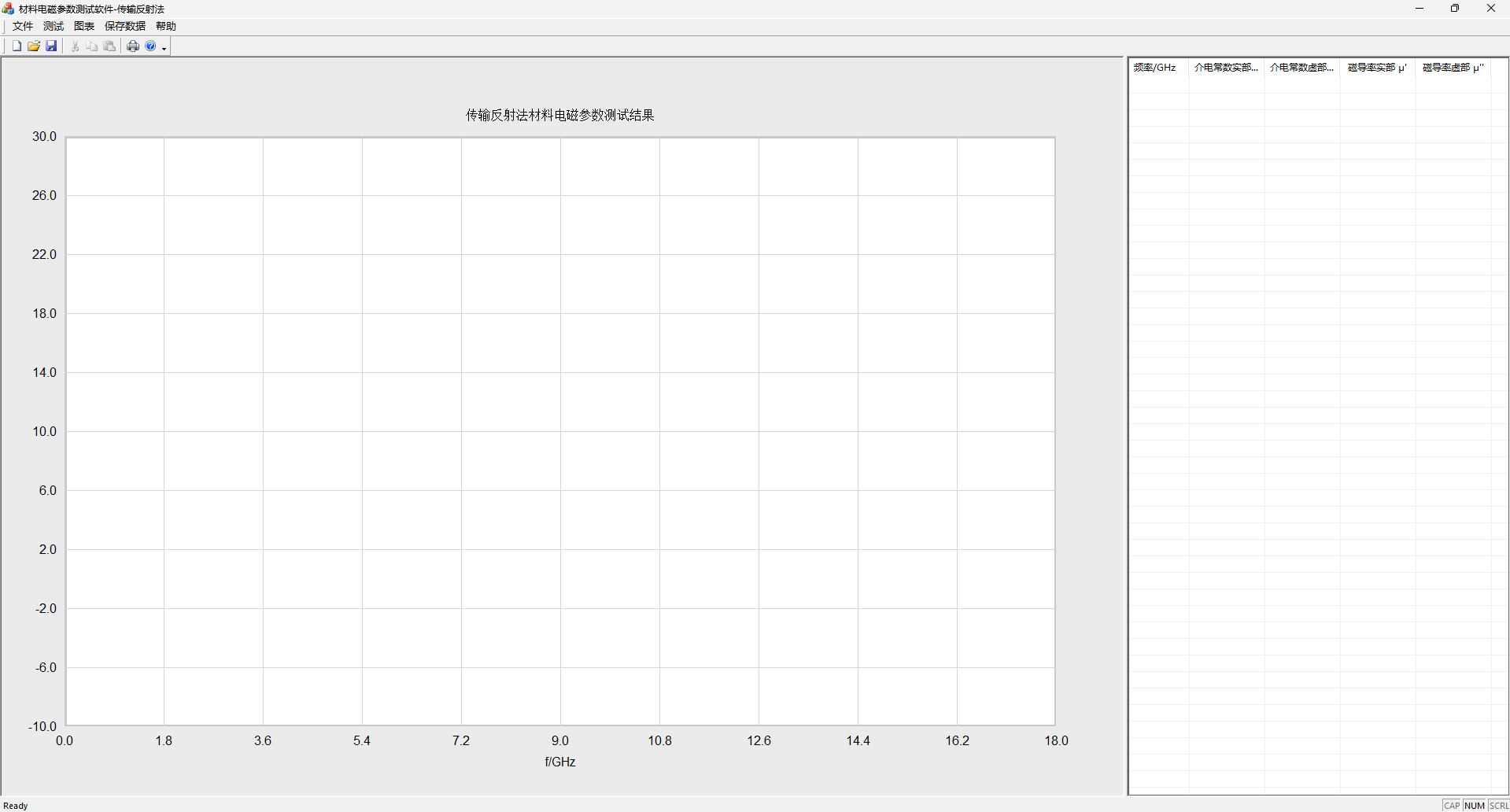

Software System
