LAMBDA Series RIS

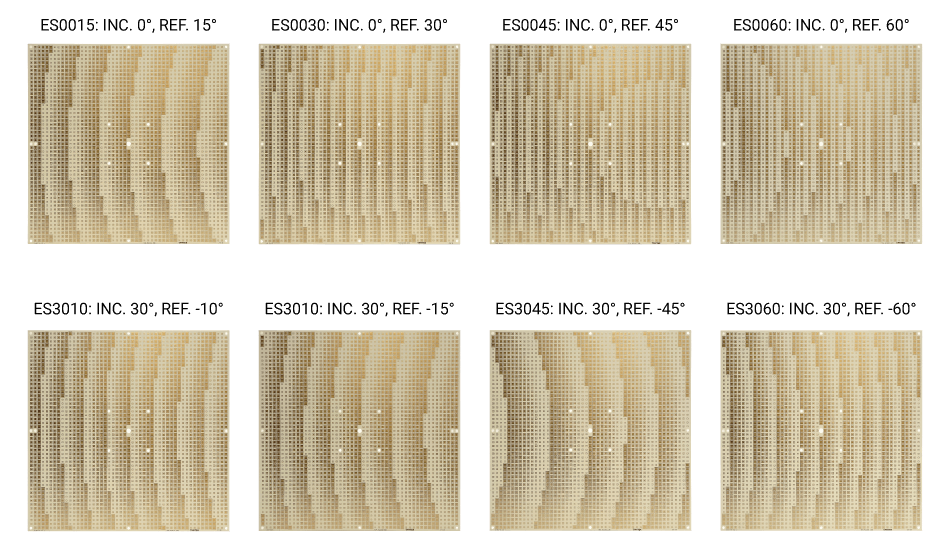

Reflector RIS
Operating Freq.: 26~30GHz
Dimensions: 280 × 280 × 1.6 mm
Distance from Tx: >2m
· Low installation cost, no extra power or maintenance
· Instantly extend and design FR2 n257/n261 coverage
· Covers most application reflection angles
· Gain extends mmWave signal coverage
· Reflectors with different angles can be used together
Dynamic RIS

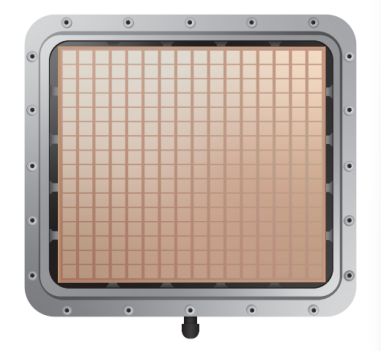

4.7GHz RIS
Operating Freq.: 4.2~5.2 GHz
No. of Elements: 16 x 16
Dimensions: 510 x 510mm2
Scan Angle Range: -60° to +60°
· Single-linear polarization, V/H; Independent element control; UDP protocol; 64-ch DAC amplifier driver board.

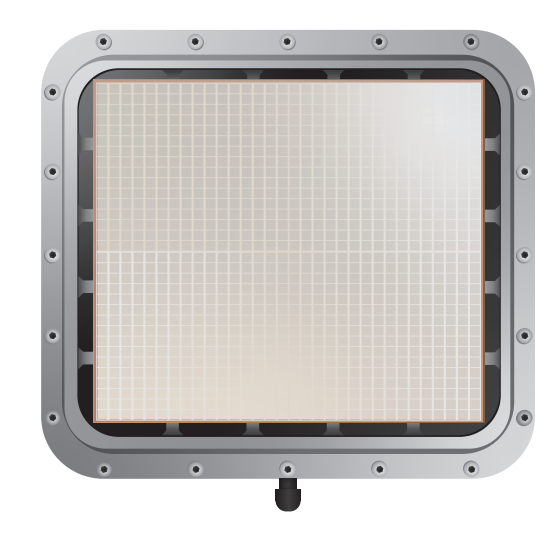

28GHz RIS
Operating Freq.: 26~30GHz
No. of Elements: 32 x 32
Dimensions: 267 x 267mm
Scan Angle Range: -60° to +60°
· Single-linear polarization, V/H; Independent element control; UDP protocol; 64-ch DAC amplifier driver board.
