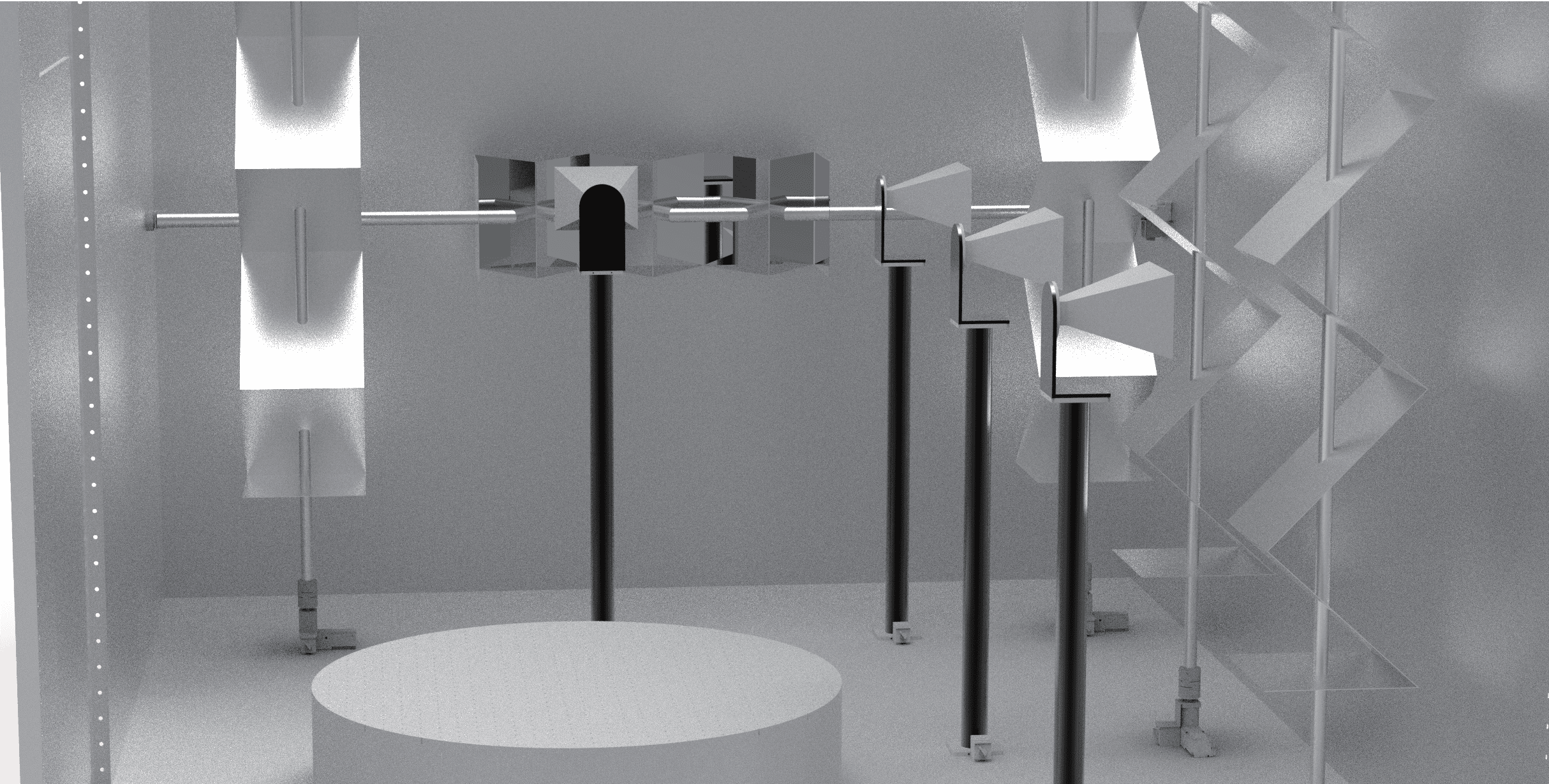

LAMBDA Series Reverberation Chamber
Applications
Primarily for testing spurious radiation, TRP, TIS, etc., of large wireless products like base stations, smart appliances, industri-al robots. Suitable for R&D, production, inspection, and certification stages.
Product Features
· Flexible system configuration to meet various standard requirements
· Efficient test software for reverberation chamber calibration and testing needs
· Advantages: small footprint, high efficiency, high sensitivity, wide dynamic range, broad frequency band
· Optional frequency range (0.4GHz~18 GHz, customizable)
Specifications
|
Frequency |
Chamber |
8~110GHz (Support for a custom frequency range) |
|
Shielding Eff |
Chamber |
≥90dB (Typ.) |
|
Accuracy (Gain) |
Chamber |
±0.3dB |
|
Repeatability (Gain) |
Chamber |
±0.1dB |
|
TRP Meas. Speed |
Positioner |
≤3 min / freq. point |
|
Max. DUT Volume |
DUT |
0.65m³ |
|
Max. DUT Weight |
DUT |
150KG |

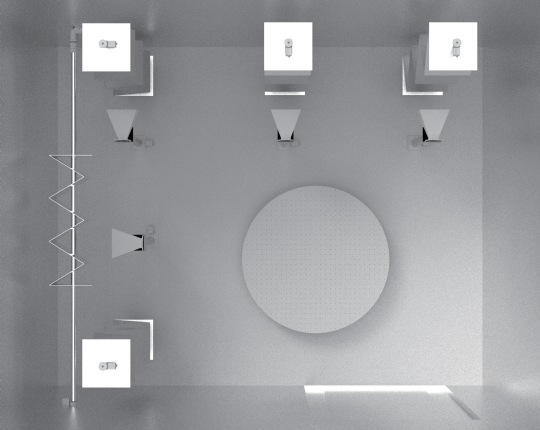

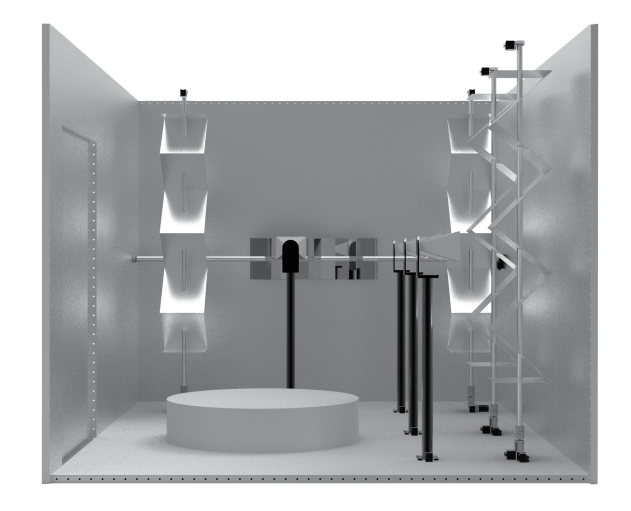

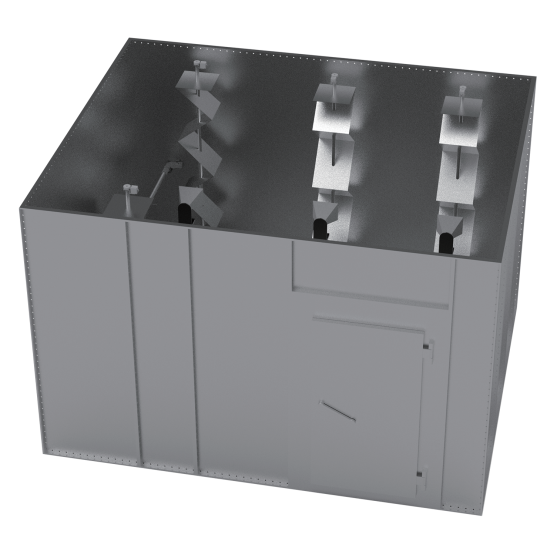

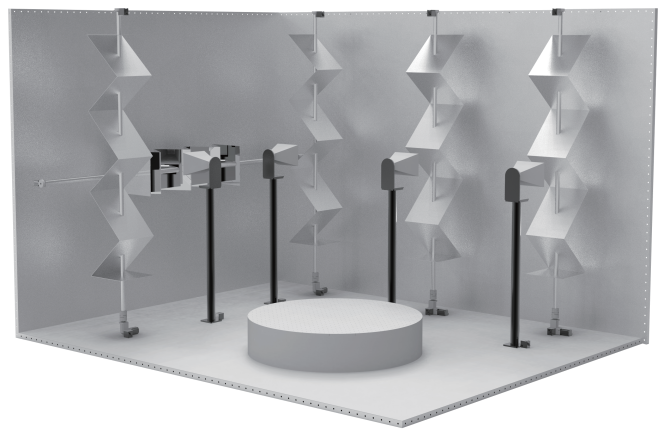

Optional Configuration
Software System
· Compact Range Test Software
