LAMBDA Series Standard Gain Horn Antennas
Providing various microwave and mmWave antennas and probes from 2.6GHz~110GHz (higher bands customizable), such as: standard gain horn antennas, wideband horn antennas, omnidirectional antennas, planar wave generators, etc.

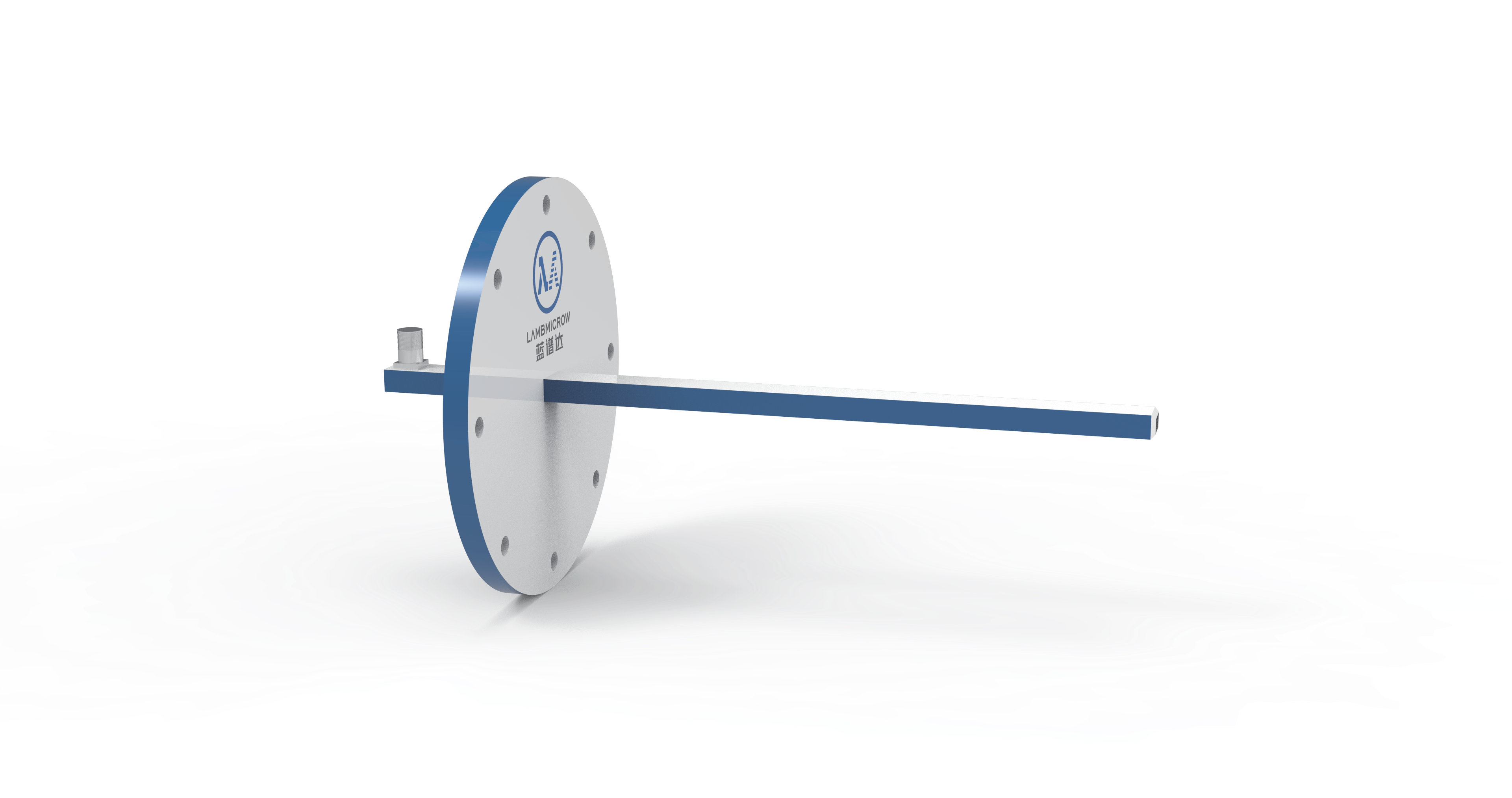

Waveguide Antennas
|
Model |
Freq. Band |
Uswr |
Terminal |
Material |
|
LAMBDA14WOEWPN |
1.13~1.73GHz |
≤2.2 |
N-K |
aluminum |
|
LAMBDA22WOEWPN |
1.72~2.61GHz |
≤2.2 |
N-K |
aluminum |
|
LAMBDA32WOEWPN |
2.6~3.95GHz |
≤2.2 |
N-K |
aluminum |
|
LAMBDA48WOEWPN |
3.94~5.99GHz |
≤2.2 |
N-K |
aluminum |
|
LAMBDA70WOEWPN |
5.38~8.17GHz |
≤2.2 |
N-K |
aluminum |
|
LAMBDA100WOEWPS |
8.2~12.5GHz |
≤2.2 |
SMA-K |
aluminum |
|
LAMBDA140WOEWPS |
11.9~18GHz |
≤2.2 |
SMA-K |
aluminum |
|
LAMBDA220WOEWPK |
17.6~26.7GHz |
≤2.2 |
2.92-K |
copper |
|
LAMBDA320WOEWPK |
26.3~40GHz |
≤2.2 |
2.92-K |
copper |
|
LAMBDA400WOEWPV |
32.9~50GHz |
≤2.2 |
2.4-K |
copper |
|
LAMBDA500WOEWP+1.85 |
40~60GHz |
≤2.2 |
1.85-K |
copper |
|
LAMBDA620WOEWP+1.85 |
49.8~75.8GHz |
≤1.8 |
1.85-K |
copper |
|
LAMBDA900WOEWP+1.85 |
73.8~112GHz |
≤1.8 |
1.0-K |
copper |

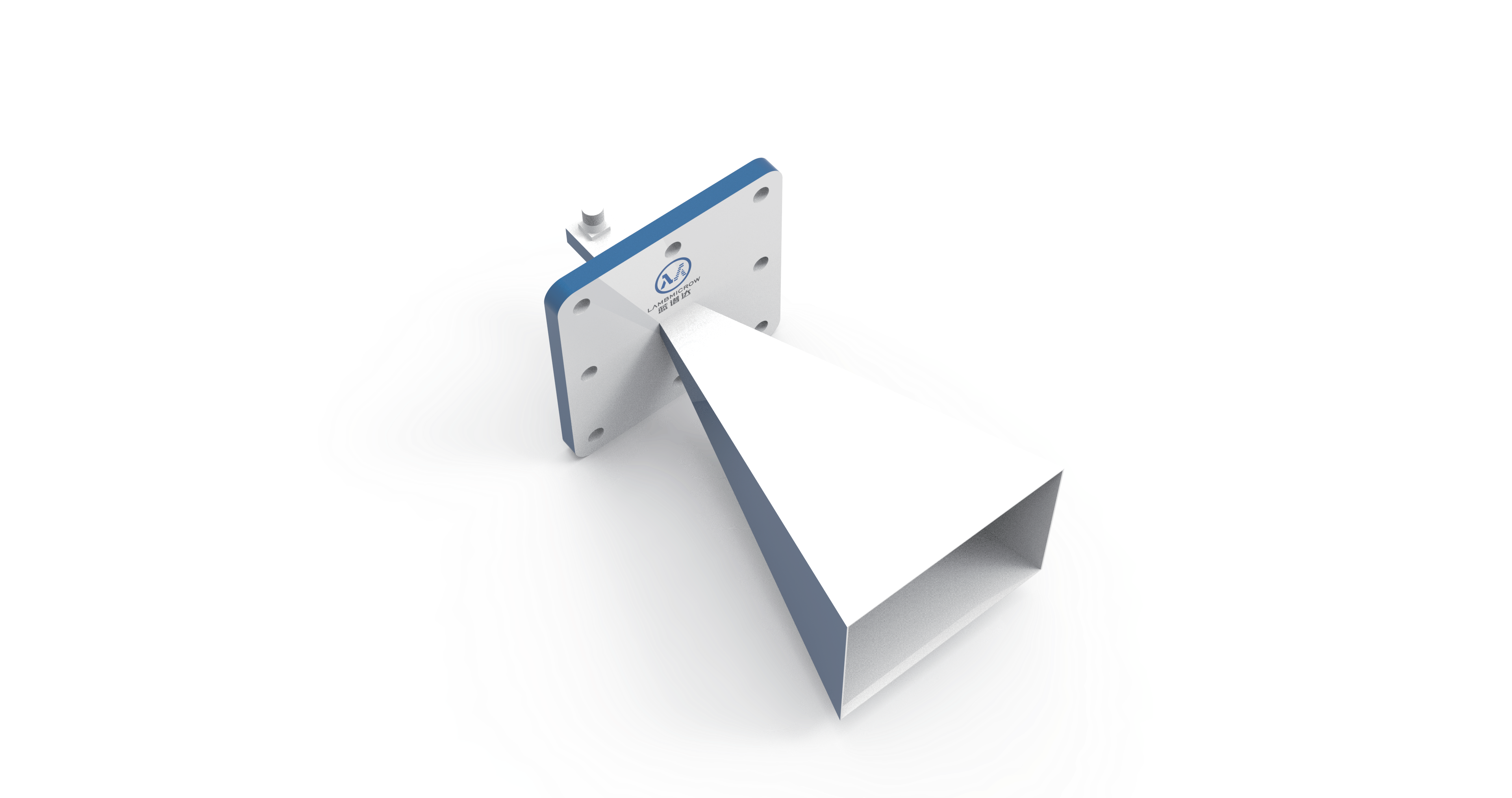

Standard Gain Horn Antennas
|
Model |
Freq. Band |
Gain(TYP.) |
Uswr |
Terminal |
Material |
|
LAMBDA22SGAH15N |
1.72~2.61GHz |
15dB |
≤1.5 |
N-K |
aluminum |
|
LAMBDA32SGAH15N |
2.6~3.95GHz |
15dB |
≤1.5 |
N-K |
aluminum |
|
LAMBDA48SGAH15N |
3.94~5.99GHz |
15dB |
≤1.5 |
N-K |
aluminum |
|
LAMBDA70SGAH2ON |
5.38~8.17GHz |
20dB |
≤1.5 |
N-K |
aluminum |
|
LAMBDA100SGAH20S |
8.2~12.5GHz |
20dB |
≤1.5 |
SMA-K |
aluminum |
|
LAMBDA140SGAH20S |
11.9~18GHz |
20dB |
≤1.5 |
SMA-K |
aluminum |
|
LAMBDA140SGAH25S |
11.9~18GHz |
25dB |
≤1.5 |
SMA-K |
aluminum |
|
LAMBDA220SGAH20K |
17.6~26.7GHz |
20dB |
≤1.5 |
2.92-K |
copper |
|
LAMBDA220SGAH25K |
17.6~26.7GHz |
25dB |
≤1.5 |
2.92-K |
copper |
|
LAMBDA320SGAH20K |
26.3~40GHz |
20dB |
≤1.5 |
2.92-K |
copper |
|
LAMBDA320SGAH25K |
26.3~40GHz |
25dB |
≤1.5 |
2.92-K |
copper |
|
LAMBDA400SGAH20V |
32.9~50GHz |
20dB |
≤1.6 |
2.4-K |
copper |
|
LAMBDA400SGAH25V |
32.9~50GHz |
25dB |
≤1.6 |
2.4-K |
copper |
|
LAMBDA500SGAH20+1.85 |
40~60GHz |
20dB |
≤1.8 |
1.85-K |
copper |
|
LAMBDA620SGAH25+1.85 |
49.8~75.8GHz |
25dB |
≤1.8 |
1.85-K |
copper |
|
LAMBDA900SGAH25+1.85 |
73.8~112GHz |
25dB |
≤1.8 |
1.0-K |
copper |
