Dielectric Constant Test System



Applications

Measurement of non-metallic solid materials such as ceramics, plastics, rubber, glass, rock, resin, composites, PCBs, etc.



Capabilities

LAMBDA Series Dielectric Constant Test System  is capable of testing material’s complex dielectric constant, complex magnetic permeability and other parameters. The system consists of a vector network analyzer, test fixtures, system software, etc. According to the user’s requirements of different frequencies and material types, a variety of different fixtures such as waveguides, waveguide coaxial air lines, resonant cavities, can be customized for testing.

·Waveguide Transmission Dielectric Constant Measurement System

·Closed Resonant Cavity Dielectric Constant Measurement System

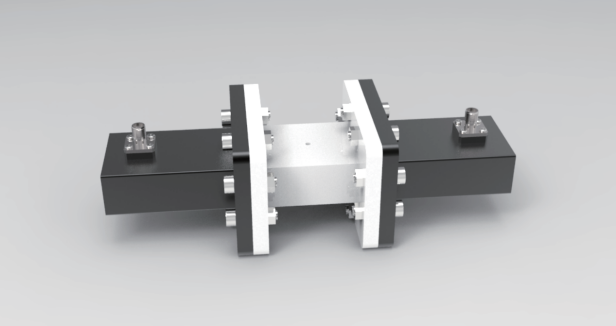

·Rectangular Resonant Cavity Dielectric Constant Measurement System

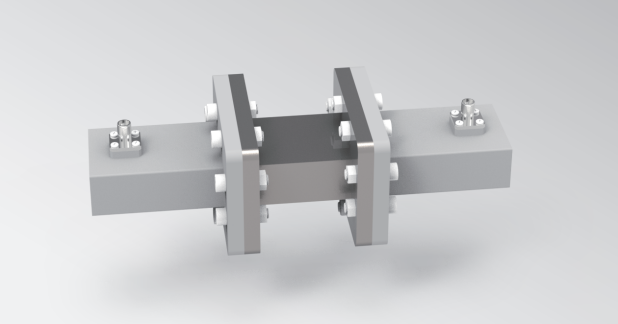

·Waveguide Transmission Dielectric Constant Measurement System

  Frequency: 490MHz ~ 40GHz (can be customized)

  Range: dielectric constant 1 ~ 100; loss tangent 0.1 ~ 2.0

  Accuracy: dielectric constant 1%; loss tangent 15%

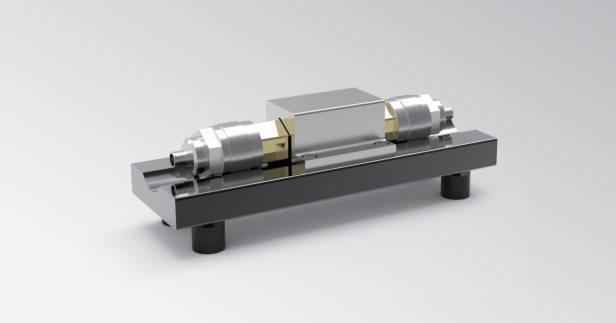

·Closed Resonant Cavity Dielectric Constant Measurement System

  Frequency: 1GHz ~ 15GHz (can be customized)

  Range: dielectric constant 1 ~ 100; loss tangent 0.00005 ~ 0.005

  Accuracy: dielectric constant 0.2% ~ 1%; loss tangent 1% ~ 3%
