, Teaching Solution Antenna Measurement Kit

Teaching Solution Antenna Measurement Kit

Main Functions
This system is primarily designed for microwave technology and antenna experiments, allowing microwaves to be refracted and reflected in experiments such as single-slit diffraction, double-slit interference, directional pattern measurement, gain measurement, standing wave measurement, and polarization measurement. It also supports microstrip antenna and dipole antenna production experiments. By enabling students to actively design and conduct experiments themselves, this system transforms traditional verification-dominated educational approaches and provides a comprehensive experience in perceiving the complete process of electromagnetic wave emission, propagation, and reception.

Experiment application introduction

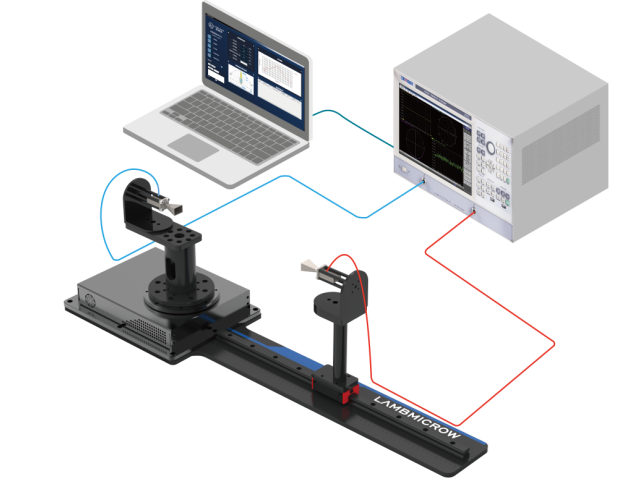

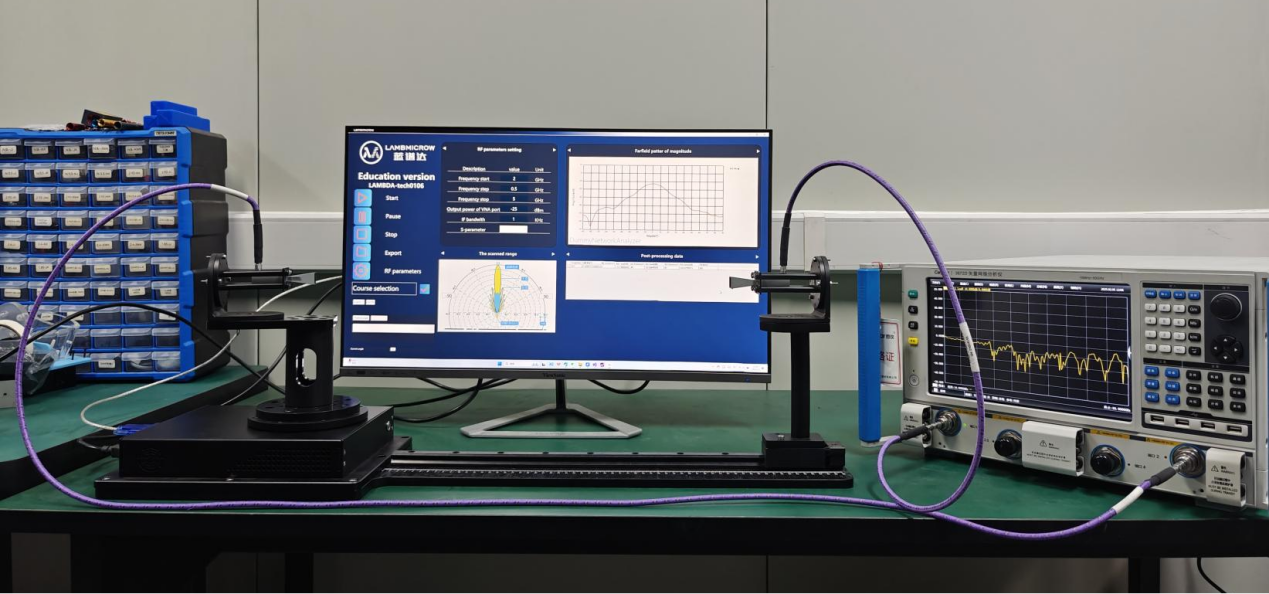

This system primarily consists of three main components: the scanning and acquisition system, the RF system, and the host computer testing software. The device can provide three experimental applications: Sub-6GHz antenna testing, multi-beam amplitude/phase modulation antenna testing, and terahertz antenna testing.

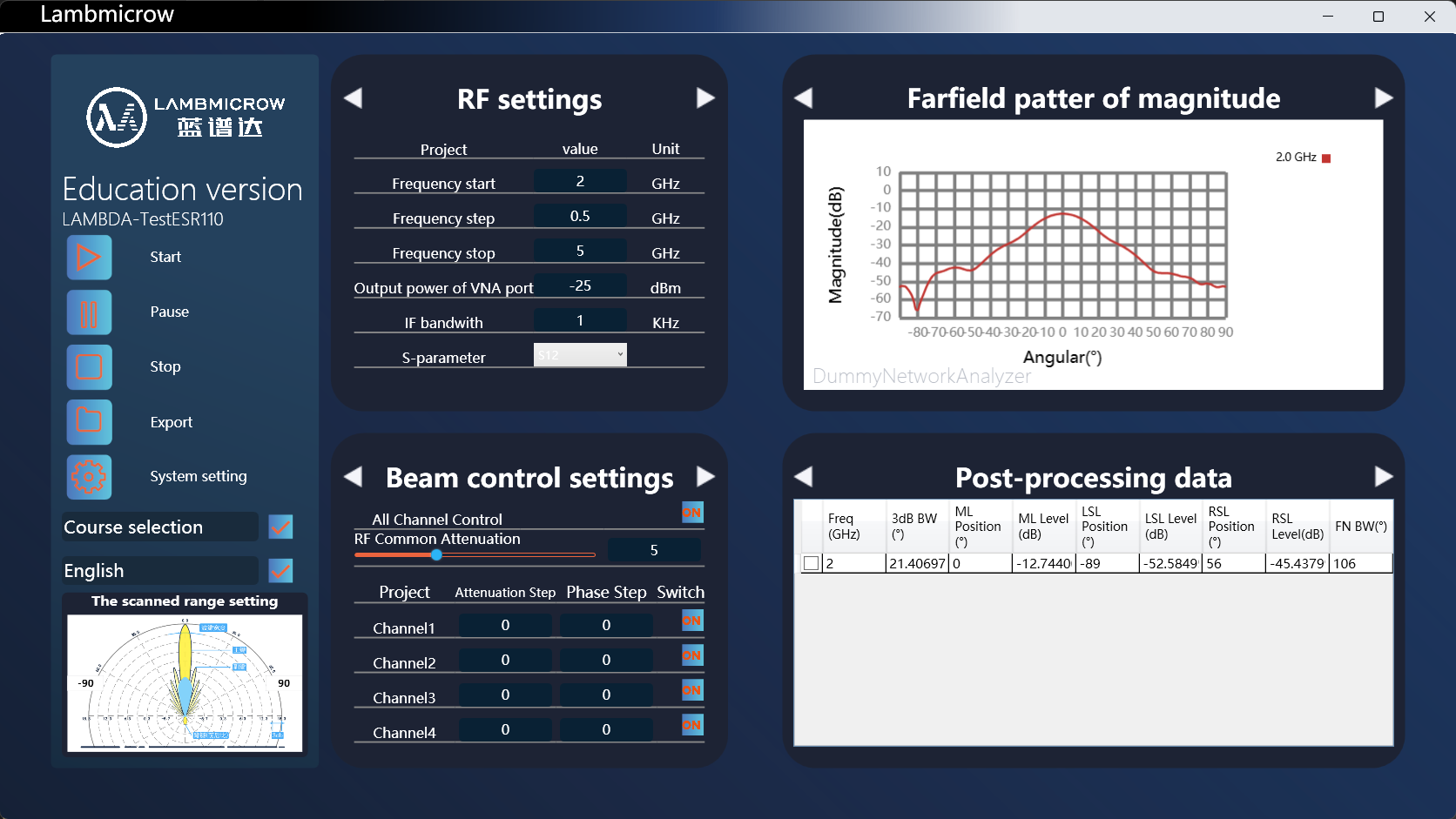

Software Introduction
Multi-band scanning: Allows measurements of multiple frequencies in a single scan, providing fast and comprehensive results.

User-driven software: The 2D far-field measurement software simplifies parameter input and enables direct viewing of results on the same interface.

Software customization: Supports versatile interface customization and modification.
